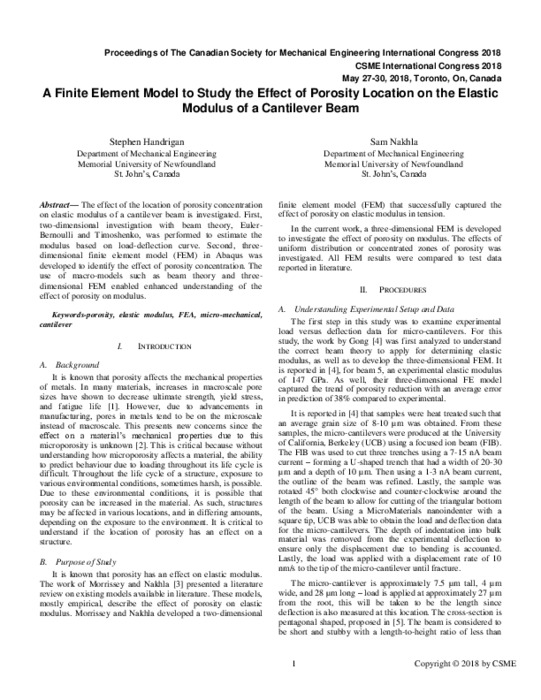

A Finite Element Model to Study the Effect of Porosity Location on the Elastic Modulus of a Cantilever Beam
Loading...
Date
May-18
Authors
Handrigan, Stephen
Nakhla, Sam
Journal Title
Journal ISSN
Volume Title
Publisher
CSME-SCGM
Abstract
The effect of the location of porosity concentration on elastic modulus of a cantilever beam is investigated. First, two-dimensional investigation with beam theory, Euler-Bernoulli and Timoshenko, was performed to estimate the modulus based on load-deflection curve. Second, three-dimensional finite element model (FEM) in Abaqus was developed to identify the effect of porosity concentration. The use of macro-models such as beam theory and three-dimensional FEM enabled enhanced understanding of the effect of porosity on modulus.
Description
Paper presented at 2018 Canadian Society of Mechanical Engineers International Congress, 27-30 May 2018.
Keywords
Porosity, Elastic modulus, FEA, Micro-mechanical, Cantilever, Engineering Analysis & Design, Mechanical Engineering Education
